Deploy a Sample App from DKP GitOps

Use this procedure to deploy a sample podinfo application from DKP Enterprise GitOps.

Prerequisites

• Enterprise DKP installed

• Kommander installed

• Github account and personal access token

• Add cluster to Kommander

• Setup Workspace and Projects

Deployment Steps

This procedure was run on an AWS cluster with DKP installed.

Follow these steps:

1. Ensure you are on the Default Workspace (or other workspace you have access to) so that you can create a project.

2. Create a project.

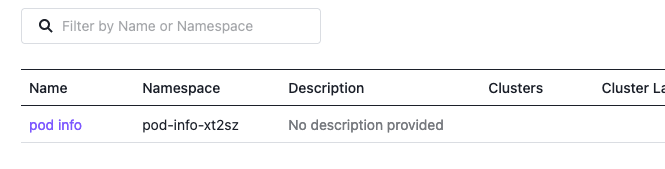

   In the working example we name the project pod-info. When you create a namespace, Kommander appends five alphanumeric characters. You can opt to select a target cluster for this project from one of the available attached clusters, and then this (pod-info-xxxxx) is the namespace used for deployments under the project, for example:



3. [Optional] Create a secret in order to pull from the repository, for private repositories.

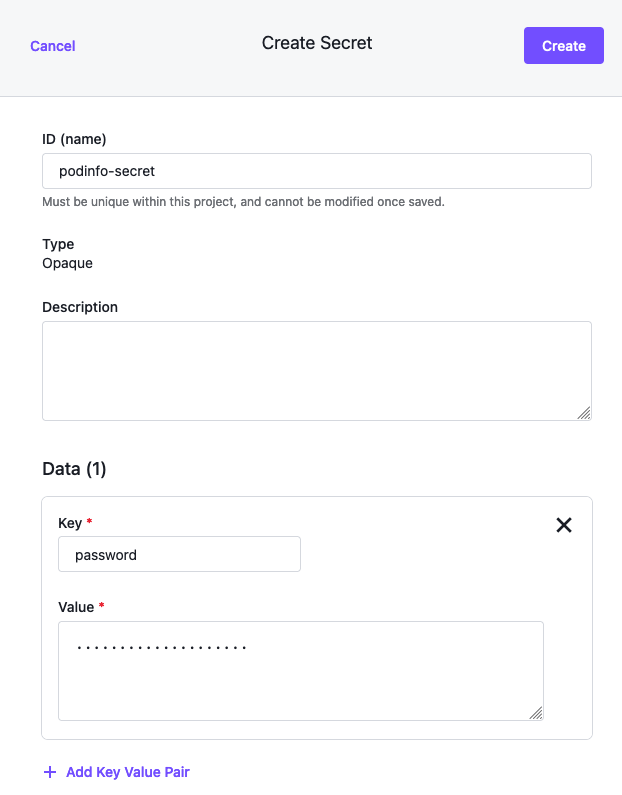

   1. Select the Secrets tab and set up your secret according to the Continuous Deployment documentation.

   2. Add a key and value pair for the GitHub personal access token and then select Create.



4. Verify that the secret podinfo-secret is created on the project namespace in the managed or attached cluster:

   CODE

   kubectl get secrets -n pod-info-xt2sz --kubeconfig=${CLUSTER_NAME}.conf

   CODE

   NAME                         TYPE                                  DATA   AGE
   default-token-k685t          kubernetes.io/service-account-token   3      94m
   pod-info-xt2sz-token-p9k5z   kubernetes.io/service-account-token   3      94m
   podinfo-secret               Opaque                                1      1s
   tls-root-ca                  Opaque                                1      93m

5. Select your project and then select the CD tab.

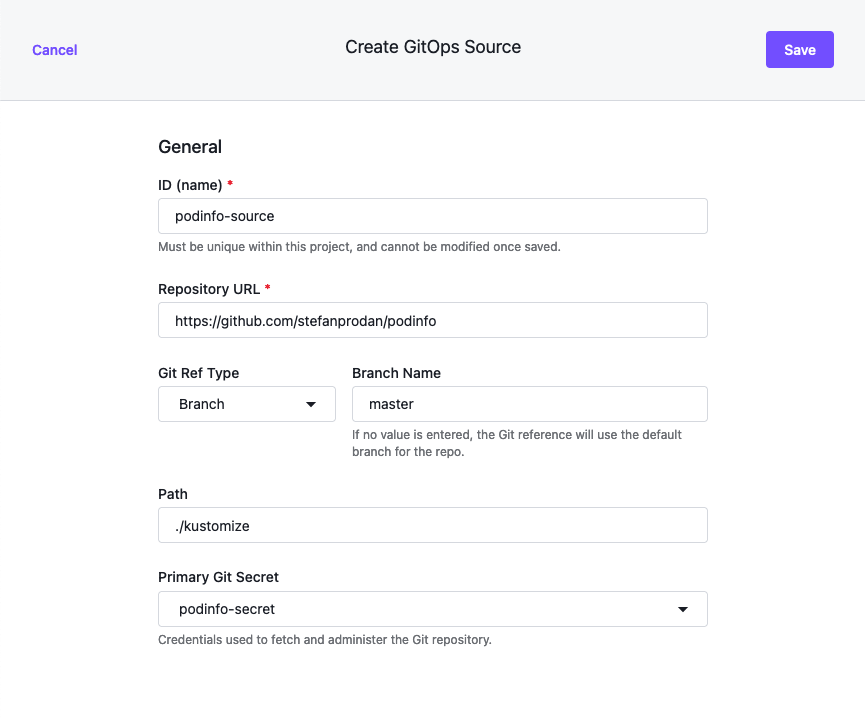

6. Add a GitOps Source, complete the required fields, and then Save.
   There are several configurable options such as selecting the Git Ref Type but in this example we use the master branch. The Path value should contain where the manifests are located. Additionally, the Primary Git Secret is the secret (podinfo-secret) that you created in the previous step, if you need to access private repositories. This can be disregarded for public repositories.

7.

   1. Verify the status of gitrepository creation with this command (on the attached or managed cluster), and if READY is marked as True:

   CODE

   kubectl get gitrepository -A --kubeconfig=${CLUSTER_NAME}.conf

   CODE

   NAMESPACE        NAME           URL                                                    	   AGE    READY   STATUS
   kommander-flux   management    	https://gitea-http.kommander.svc/kommander/kommander.git   134m   True    stored artifact for revision 'main/4fbee486076778c85e14f3196e49b8766e50e6ce'
   pod-info-xt2sz   podinfo-source	https://github.com/stefanprodan/podinfo                    116m   True    stored artifact for revision 'master/b3b00fe35424a45d373bf4c7214178bc36fd7872'

8. Verify the Kustomization with this command below (on the attached or managed cluster), and if READY is marked as True:

   CODE

   kubectl get kustomizations -n pod-info-xt2sz --kubeconfig=${CLUSTER_NAME}.conf

   CODE

   NAME              	  AGE    READY    STATUS
   originalpodinfo       10m    True     Applied revision: master/b3b00fe35424a45d373bf4c7214178bc36fd7872
   podinfo-source        113m   True     Applied revision: master/b3b00fe35424a45d373bf4c7214178bc36fd7872
   project               116m   True     Applied revision: main/4fbee486076778c85e14f3196e49b8766e50e6ce
   project-tls-root-ca   117m   True     Applied revision: main/4fbee486076778c85e14f3196e49b8766e50e6ce

   Note the port so that you can use to verify if the app is deployed correctly (on the attached or managed cluster):

   CODE

   kubectl get deployments,services -n pod-info-xt2sz --kubeconfig=${CLUSTER_NAME}.conf

   CODE

   NAME                      READY    UP-TO-DATE    AVAILABLE    AGE
   deployment.apps/podinfo   2/2      2             2            118m

   NAME              TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
   service/podinfo   ClusterIP   10.99.239.120   <none>        9898/TCP,9999/TCP   118m

9. Port forward the podinfo service (port 9898) to verify (on the attached or managed cluster):

   CODE

   kubectl port-forward svc/podinfo -n pod-info-xt2sz 9898:9898 --kubeconfig=${CLUSTER_NAME}.conf

   CODE

   Forwarding from 127.0.0.1:9898 -> 9898
   Forwarding from [::1]:9898 -> 9898
   Handling connection for 9898
   Handling connection for 9898
   Handling connection for 9898

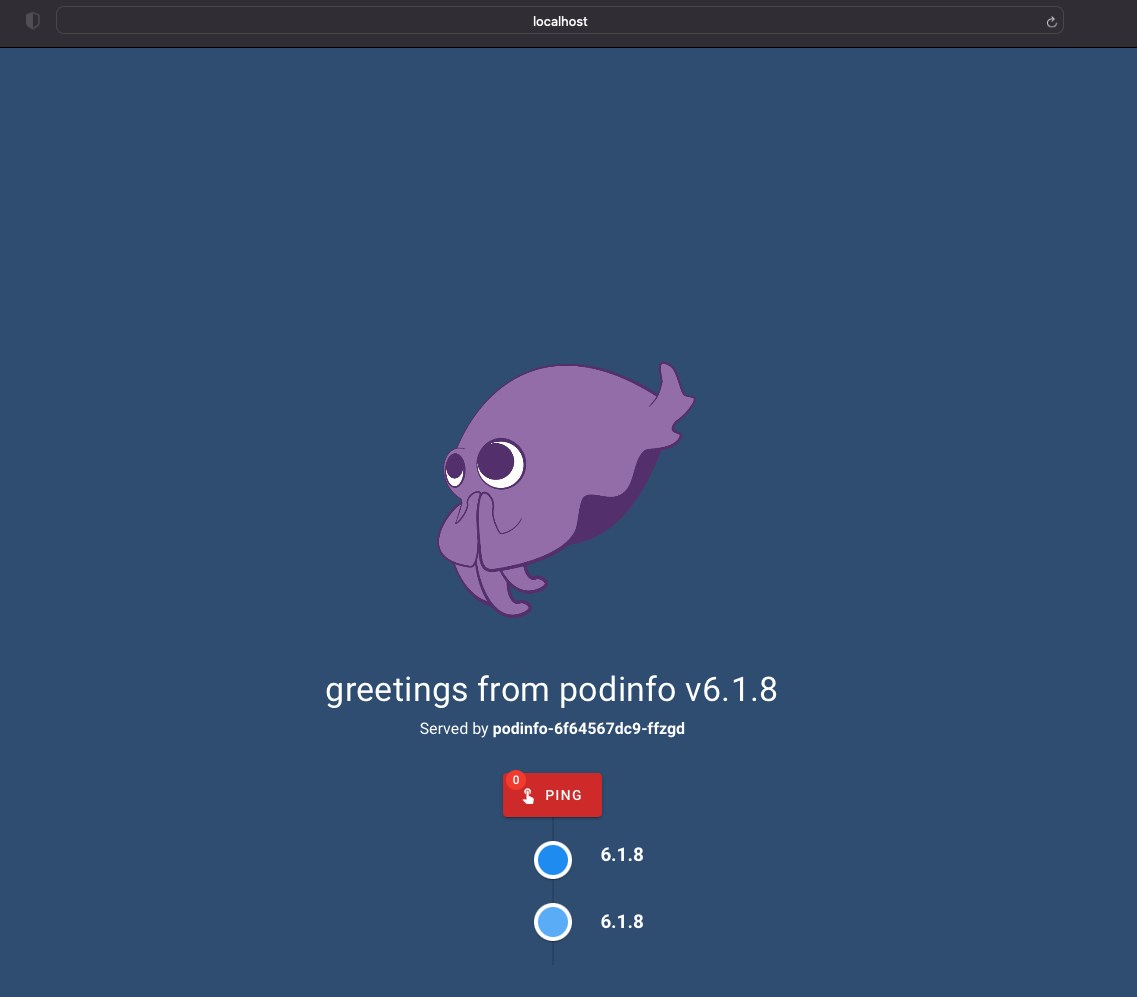

10. Open a browser and type in localhost:9898. A successful deployment of the podinfo app gives you this page:
